Summary
To test your CMOS battery leave your PC’s PSU off and unplugged overnight. If your BIOS is reset in the morning, you need a battery change.
To replace the CMOS battery, locate the battery on your motherboard, press the latch holding the battery to pop it out, and install the new one.
Are you worried your PC’s CMOS battery is dead or dying? The good news is that testing it, even without special equipment, is easy, and so is swapping it out. Here’s how to test your CMOS battery and replace it if needed.
What Is the CMOS Battery on a PC?
TheCMOS(Complementary Metal-Oxide-Semiconductor) battery on your computer’smotherboardacts as an emergency power for theBIOSand date and time settings. The CMOS keeps those BIOS orUEFIsettingsstoredin CMOSRAMwhen your computer doesn’t receive any external power, e.g., when thePSUis disconnected.
All batteries degrade over time, though, and your CMOS battery may die before you’re through with your motherboard. If that happens, the CMOS memory chip won’t be able to hold your BIOS settings between power cycles, resulting in areset, which can be very frustrating.
Related:How to Check Your BIOS Version and Update it
How to Test Your CMOS Battery
Now, the fastest way to test your CMOS battery is by checking its voltage with a digitalmultimeter. To do that, though, you’d have to open your PC’s case and remove the battery, and you’d need to own a digital multimeter.
There’s a simpler (if less immediate) method we recommend: simply unplugging your desktop PC’sPSUcable and leaving it powered off overnight. Just flip the PSU switch from 1 to 0, unplug the PSU cable, and leave the PC unplugged. In the morning, connect the PSU cable and turn on the PC. If you don’t need to set the date and time and youroperating systemboots without issues, the battery’s most likely fine.
If you need to set the date and time upon boot, if you notice that your BIOS settings switched to default, or if your PC shows you an error that reads something like “CMOS Checksum Error” before booting into Windows or your OS of choice, the battery’s most likely fit for a replacement.
Common Signs That Your CMOS Battery is Dying
The most common sign of a dyingCMOS batteryis having to set date and time each time you turn your PC on. Other signs include your BIOS settings being reset to defaults and seeing the “CMOS Checksum Error” during the boot process.
How to Replace Your CMOS Battery on a Desktop PC
CMOS battery replacement is a straightforward procedure on a desktop PC. All you have to do is open your enclosure, locate the battery, and replace it.
Step 1: Locate the CMOS Battery on Your Motherboard

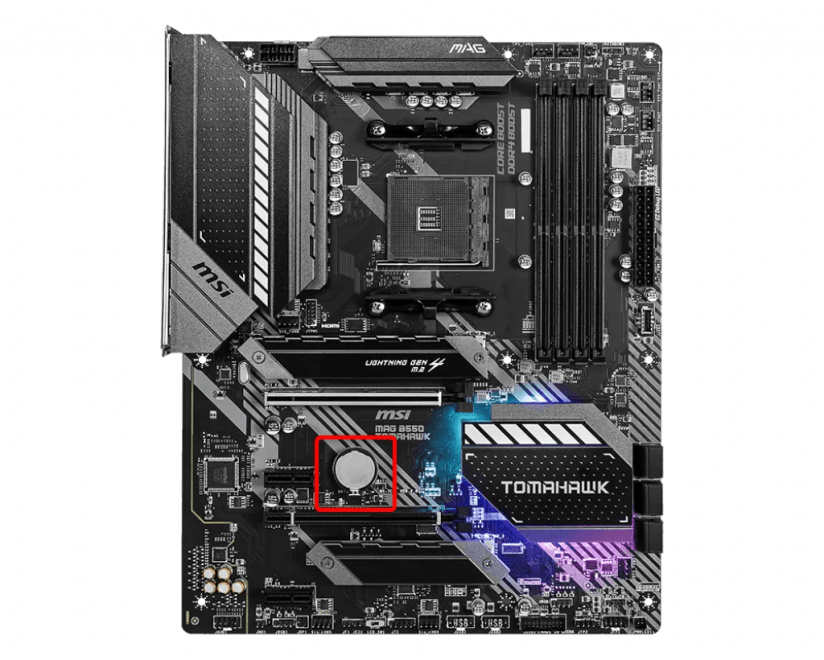

Before opening yourPC case, try searching for your motherboard photos —if you knowwhat motherboard model you have— online. Once you find a photo, look for a round silver thingy, usually located under the mainPCIe slot. Below you can see the CMOS battery location on a popular B550 motherboard, the MSI B550 Tomahawk. As you can see, the CMOS battery is quite easy to spot.
Step 2: Disconnect the Cables From Your PC and Open Your PC Case
Once you locate your CMOS battery on your motherboard, disconnect every cable hooked to your PC and open the side panel. If you didn’t find the CMOS battery location with a Google search, now’s the time to search for it. Again, look for a round, silver thing on the motherboard’s lower part.
Step 3 (Optional): Remove the Graphics Card If You Have One
If you have agraphics cardinstalled, especially a long and thick high-end GPU, you might have to remove it in order to locate and access the CMOS battery. In most cases, this isn’t needed, but on some motherboards, the GPU can obstruct access to the CMOS battery.
Step 4: Take a Photo of the Battery to Find Out Its Type

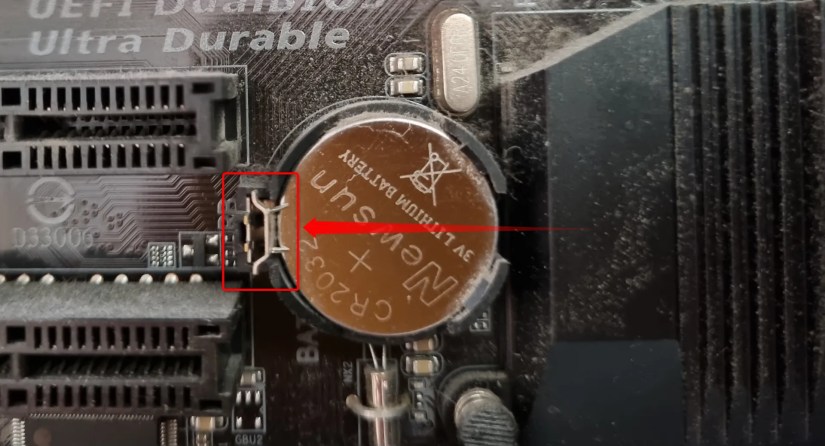

Once you locate the CMOS battery,take a photo of itto find out its type. Most newer motherboard models use a CR2032 battery, but there’s a chance your board uses a different type. As you can see below, the CMOS battery on our secondary PC is a CR2032 unit.
Step 5: Get a New Battery and Replace it
Once you find the CMOS battery type installed in your motherboard, get a new one and replace it.
Energizer CR2032
The Energizer CR2032 is an excellent choice if you need to replace your CMOS battery.
Most CMOS batteries are secured to the motherboard with a metal or plastic latch. To remove the battery, press the latch with a flathead screwdriver or your fingernails and pop the battery out. Next, slot the new battery into the CMOS battery slot. That’s it!
Can You Replace the CMOS Battery on a Laptop?
While the CMOS battery replacement on a desktop PC is a fairly straightforward procedure, replacing it on alaptopcan be much more complicated—if your laptop has a CMOS battery at all.
Older laptop models usually come with a clearly visible CMOS battery that you may replace in the same way as you’d replace one on a desktop PC.
Newer laptop models usually have a tiny CMOS battery with wires soldered to it connecting the battery to the motherboard. And in most cases, the battery’s well hidden or even located on the opposite side of the motherboard. If that’s the case, we recommend taking your laptop to a repair center and letting professionals replace the battery if possible.
Finally, some laptops don’t have a motherboard CMOS battery at all. Thin and light devices,2-in-1 convertibles, ultrabooks, high-end laptops, andMacBooksdon’t have a CMOS battery; they let the main battery power the CMOS memory or, in the case of MacBooks, use a tiny capacitor backed up by the main battery to hold date and time and other BIOS settings.
